Scenic Spot Specialized Tripod Turnstile

Scenic Spot Specialized Tripod Turnstile Core Features:

  • Deluxe design with multi-mode identification of Barcode/fingerprint/IC/ID etc.
  • Combined with brushless motor for a longer lifespan.
  • ARM control board technology with merits for stronger function and better extensibility.
  • Modular structure design is simpler and easier to maintain.
  • Better buffer effect, greatly improve anti-collision ability and prevent human injuries;
  • With promptly contrarotation will deter the intruder
  • Luxury tyep
  • Lane width:510mm
  • Application environment: Scenic spots,Amusement park
  • Appearance grade:High/middle/low(optional)
  • Anti-trailing: Excellent
  • Anti-collision: Excellent
  • Pass group:pedestrian-only
  • High cost-effective

Scenic Spot Specialized Tripod Turnstile Main Functions:

  • Solid performance and smooth running without noise and mechanical impact.
  • Wide integration and easy maintenance.
  • Bi-direction or one direction permitted one forbidden, or one direction charged, one for free, and all the working molds set by the buttons in the main control board.
  • Sparking Direction-guide lights in the automatic systems turnstiles to tell you whether the direction to go or not.
  • Standard Interface. work with ID / IC. UHF. Fingerprint Readers
  • The beam can be lifted and fall when power is cut-off.
  • Self-check and alarm for convenient to operate.

Scenic Spot Speciallized Tripod Turnstile Technical Parameter:

  • Product Model: CXT-SW120/CXT-SW126/CXT-SW127/CXT-SW125/CXT-SW123/CXT-SW160/CXT-SW1201252/CXT-SW150/CXT-SW128YX/CXT-SW128B/CXT-SW128C/CXT-SW128Z/CXT-SW128X/CXT-SW128DH/CXT-SW128DX/CXT-SW128YZ
  • Housing material: Stainless steel 304
  • Housing processing work-craft: Adopt laser, bend, cut, weld, polish and etc.
  • Specification and size: L420mm*W330mm*H980mm
  • Weight: Roughly about 40kg
  • Arm length/thickness: 510(mm)/￠38
  • Arm working drive power: 3kg
  • Motor: 24V /30W brush-less motor
  • Setting accuracy: 1/500 code
  • Suitable temperature: -40℃ ～ 80℃
  • Suitable humility: 5％—— 90％
  • Gate open gap: 0.2S
  • Delayed reset time: 3S、5S、10S、20S adjustable
  • Transit speed: 30-45person/minute
  • Working environment: Indoor and outdoor.IP65

Tripod Turnstile System Integration

CXT Tripod Turnstile can widely be integrated with Access control system, Ticketing system, Time attendance system, Consumption system, Construction system, ESD system and others. Contact us to get more turnstile for sale!

Scenic Spot Specialized Tripod Turnstile Function Comparison Table：

Seq.Item nameMarket productCXT upgraded product
1Rotation modeManual pushElectric power
2Positioning principleOptical coupling pointMotor self-position
3Positioning modePositioning armTimely re-push, unlock
4Transmission modeMagnetic valveBrush-less motor
5Control TechnologySCMARM
6Arm lock modeManualAuto
7BufferingNonehas
8Anti-reverseNonehas
9NoiseBignone
10Mechanical wearBignone
11unauthorized mechanical alarm (infrared)Nonehas
12Passing indicator Data settingNonehas
13Life-span1-3YearAbove 6 year
14Flow capacity25-30per./min.30-45per./min.
15Normal open when power offhashas
16Memoryhashas
17Fire protection inputhashas
18Feedback signal outputhashas

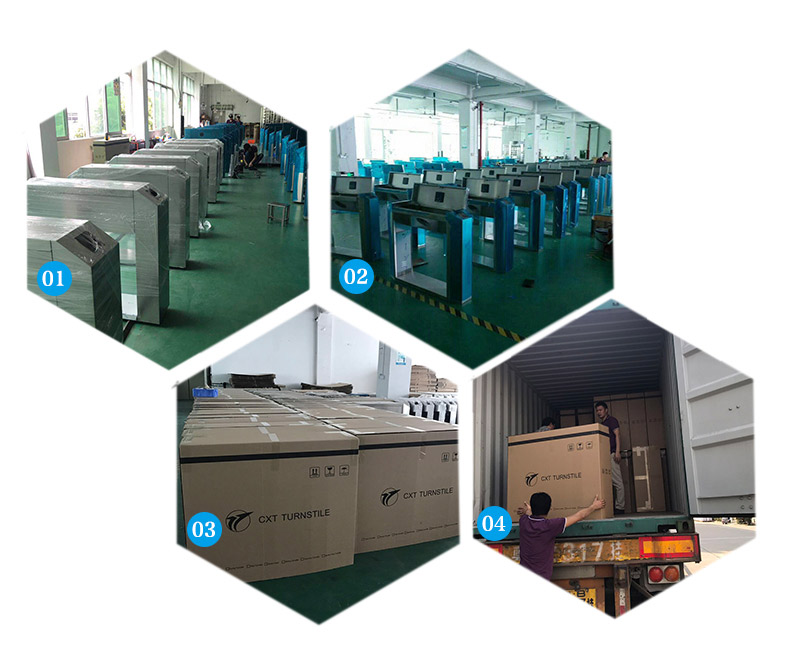

Tripod Turnstile Package：

Tripod Turnstile Package
